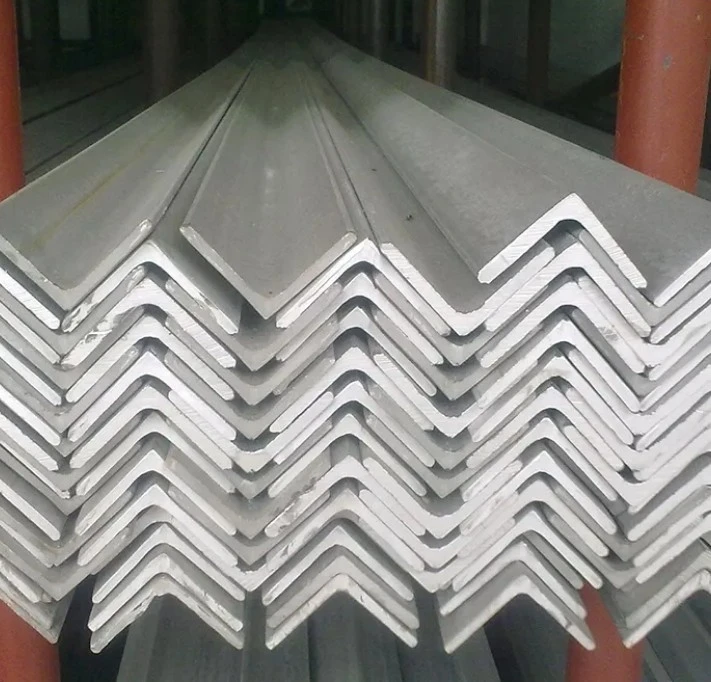

Galvanised Angle Bar

Galvanised Angle Bar is a kind of steel bar that has a L-shaped cross section with two legs, either equal or unequal. Angle Bar, also known as angle iron, is widely used in various industries, such as construction, engineering, machinery, manufacturing, and more. Galvanised Angle Bar is made of low carbon steel or high strength low alloy steel, such as Q235B, Q355B, A36, SS400, S355JR, S355J0, etc.

Send Inquiry

Product Introduction

Product Benefits

Because it can be used for a variety of applications, including water supply, gas transmission, fire protection, fencing, scaffolding, etc., Erw galvanized pipe can satisfy a wide range of customer needs.

Some of the advantages:

It is cost-effective and durable, compared to other types of steel bars.
It can provide structural support and reinforcement for various applications, such as bridges, buildings, towers, frames, etc.
It can be easily cut, bent, drilled, and welded to meet different specifications and requirements.
It can be coated or painted to enhance its appearance and performance.

Product Specifications

The chemical composition and mechanical properties of Angle Bar vary depending on the grade and standard. The following table shows some examples of Galvanised Angle Bar grades and their specifications.

Grade	Standard	Chemical Composition (%)	Mechanical Properties	Zinc Coating Thickness
Q235B	GB/T 700	C: 0.12-0.20, Mn: 0.30-0.70, Si: ≤0.30, P: ≤0.045, S: ≤0.045	Yield Strength: 235 MPa min, Tensile Strength: 370-500 MPa, Elongation: 26% min	45-75 microns
Q355B	GB/T 1591	C: ≤0.20, Mn: 1.00-1.60, Si: ≤0.55, P: ≤0.040, S: ≤0.040, Nb: ≤0.05, V: ≤0.15, Ti: ≤0.20	Yield Strength: 355 MPa min, Tensile Strength: 450-630 MPa, Elongation: 21% min	45-75 microns
A36	ASTM A36	C: 0.26 max, Mn: 1.35 max, P: 0.04 max, S: 0.05 max	Yield Strength: 250 MPa min, Tensile Strength: 400-550 MPa, Elongation: 20% min	45-75 microns
SS400	JIS G3101	C: 0.30 max, Mn: 1.60 max, P: 0.05 max, S: 0.05 max	Yield Strength: 245 MPa min, Tensile Strength: 400-510 MPa, Elongation: 17% min	45-75 microns
S355JR	EN 10025-2	C: 0.24 max, Mn: 1.60 max, P: 0.035 max, S: 0.035 max	Yield Strength: 355 MPa min, Tensile Strength: 470-630 MPa, Elongation: 22% min	55-80 microns
S355J0	EN 10025-2	C: 0.20 max, Mn: 1.60 max, P: 0.030 max, S: 0.030 max	Yield Strength: 355 MPa min, Tensile Strength: 470-630 MPa, Elongation: 22% min	55-80 microns

Customer Service

We have a professional sales team that can provide you with the best quotation and consultation for erw galvanized pipe.
We have a skilled production team that can ensure the quality and quantity of erw galvanized pipe.
We have a fast delivery team that can deliver erw galvanized pipe to your destination in time and in good condition.
