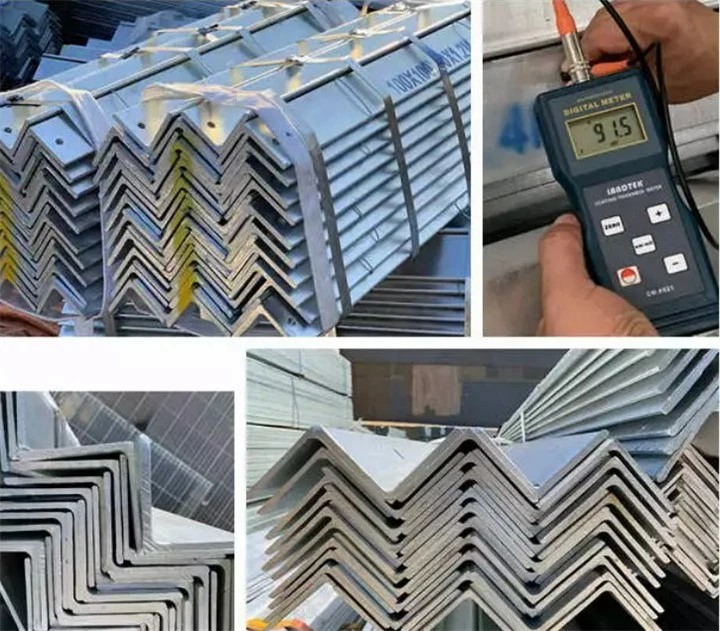

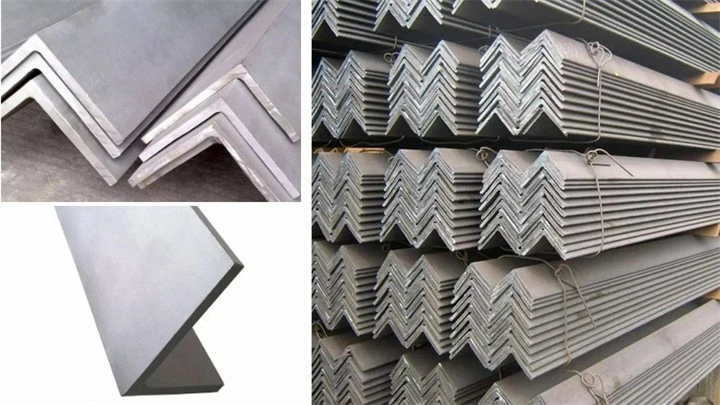

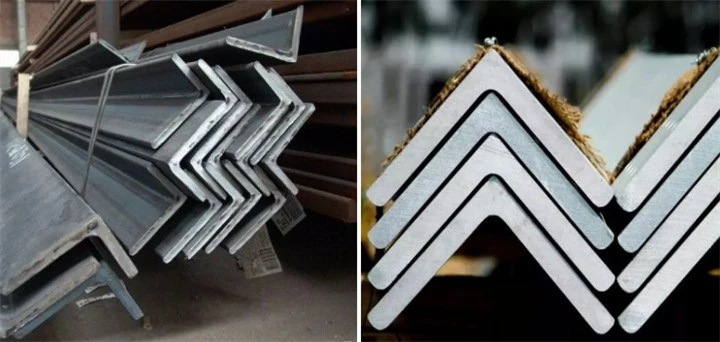

Angle Bar Beam
Angle Bar Beam is a type of structural steel beam, also known as L-shaped beam or angle section. It is made of low carbon steel S235, which has good weldability and ductility, and is suitable for various structural applications. Angle Bar Brace has a right-angled cross-section, which consists of two legs of equal or unequal length. The angle between the legs can vary from 30° to 180°, depending on the design and load requirements.
Usage
Angle Bar Braces are widely used in numerous applications, such as:
- Building Construction: For framing, support, and reinforcing structural elements in both commercial and residential buildings.
- Infrastructure Projects: In constructing bridges, towers, and other large structures where stability and load-bearing capacity are vital.
- Industrial Facilities: For framework and shelving in factories, warehouses, and workshops.
- Architectural Applications: As decorative elements in modern architecture, offering both strength and aesthetic appeal.
Product Specifications
Angle Bar Brace is available in different sizes, specifications, and grades, depending on your needs and preferences. Here are some of the common dimensions and properties of Angle Bar Beam according to the European standard EN 10056-1: 2017
|
Equal Angle Bar |
|||||
|
Size(mm) |
Theoretical Weight (kg/m) |
Size(mm) |
Theoretical Weight (kg/m) |
Size(mm) |
Theoretical Weight (kg/m) |
|
25*3 |
1.124 |
70*6 |
6.406 |
100*16 |
23.257 |
|
25*4 |
1.459 |
70*7 |
7.398 |
110*8 |
13.532 |
|
30*3 |
1.373 |
70*8 |
8.373 |
110*10 |
16.69 |
|
30*4 |
1.786 |
75*5 |
5.818 |
110*12 |
19.782 |
|
40*3 |
1.852 |
75*6 |
6.905 |
110*14 |
22.809 |
|
40*4 |
2.422 |
75*7 |
7.976 |
125*8 |
15.504 |
|
40*5 |
2.967 |
75*8 |
9.03 |
125*10 |
19.133 |
|
50*3 |
2.332 |
75*10 |
11.089 |
125*12 |
22.696 |
|
50*4 |
3.059 |
80*6 |
7.736 |
125*14 |
26.193 |
|
50*5 |
3.77 |
80*8 |
9.658 |
140*10 |
21.488 |
|
50*6 |
4.465 |
80*10 |
11.874 |
140*12 |
25.522 |
|
60*5 |
4.57 |
90*8 |
10.946 |
140*14 |
29.49 |
|
60*6 |
5.42 |
90*10 |
13.476 |
160*12 |
29.391 |
|
63*4 |
3.907 |
90*12 |
15.94 |
160*14 |
33.987 |
|
63*5 |
4.822 |
100*8 |
12.276 |
160*16 |
38.518 |
|
63*6 |
5.721 |
100*10 |
15.12 |
160*18 |
48.63 |
|
63*8 |
7.7469 |
100*12 |
17.898 |
180*18 |
48.634 |
|
70*5 |
5.397 |
100*14 |
20.611 |
200*24 |
71.168 |
|
Grade |
Standard |
Chemical composition (%) |
Mechanical properties |
|
C |
Si |
Mn |
P |
|
S235 |
EN 10025-2 |
≤0.17 |
≤0.35 |
Angle Bar Beam is easy to use and install, as they can be welded or bolted to other structural elements. However, some precautions and instructions should be followed to ensure the quality and safety of the installation
Advantage
- Structural Integrity: Provides excellent strength and stability, suitable for heavy load-bearing applications.
- Versatility: Can be used in a wide range of structural and architectural projects.
- Easy Fabrication and Assembly: The simple shape allows for easy cutting, welding, and joining.
- Cost-Effective: Offers a balance between strength, functionality, and cost, making it an economical choice for various projects.

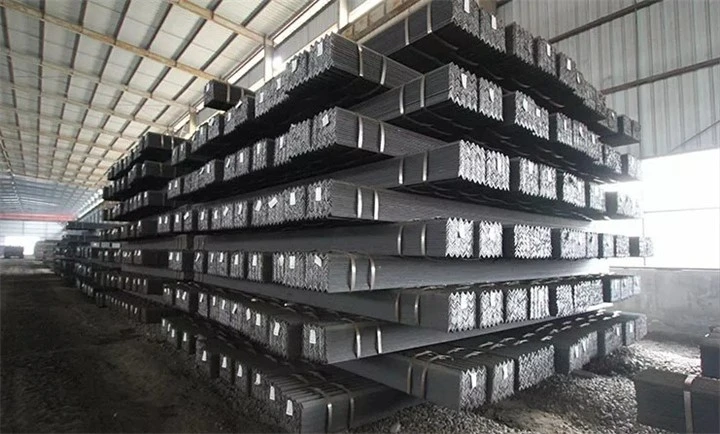

Angle Bar Beam in China
In China, Angle Bar Braces are produced with precision and quality, adhering to high manufacturing standards. Leveraging state-of-the-art technology and extensive industry experience, Chinese manufacturers deliver Angle Bar Beams that are both reliable and competitively priced. These beams are recognized for their consistency and versatility, making them a popular choice for construction and engineering projects globally.
