Ipe 200 Profile

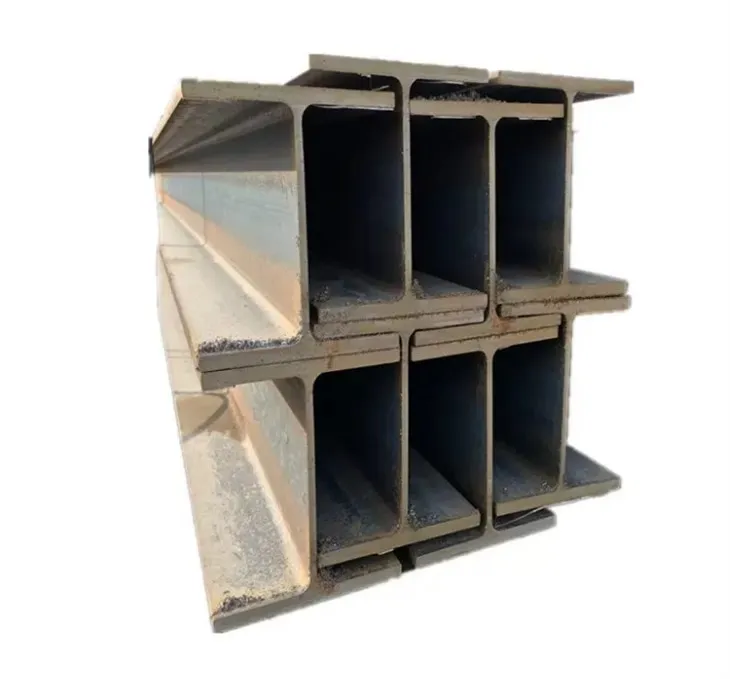

Ipe 200 Profile is a type of steel beam that has a double T shape, also known as I beam or I section. It is widely used in construction, engineering, and industrial applications for its high strength, rigidity, and durability. It belongs to the European standard IPE series, which covers a range of dimensions and grades of steel beams. In this article, we will introduce some features, advantages, and applications of Ipe 200 profile.

• It has a height of 200 mm, a width of 100 mm, a web thickness of 5.6 mm, and a flange thickness of 8.5 mm. The radius of the fillet between the web and the flange is 12 mm. The straight part of the web is 159 mm, and the clear height of the web is 183 mm. The cross-sectional area of Ipe 200 is 28.5 cm2, and the weight per meter is 22.4 kg.
• It is made of structural steel that conforms to the EN 10025-2 standard, which specifies the technical delivery conditions for hot rolled products of non-alloy and fine grain structural steels. The most common steel grades for Ipe 200 are S235JR, S275JR/J0, and S355JR/J2, which have different yield strengths and tensile strengths. The chemical composition and mechanical properties of these steel grades are shown in the following table¹.
• Ipe 200 has a high moment of inertia and section modulus, which indicate its resistance to bending and deflection. The moment of inertia and section modulus of Ipe 200 about the major axis (y-y) are 1943.11 cm4 and 194.31 cm3, respectively. The moment of inertia and section modulus of Ipe 200 about the minor axis (z-z) are 142.37 cm4 and 28.47 cm3, respectively.

Ipe 200 has many advantages over other types of steel beams, such as:

• It has a high strength-to-weight ratio, which means it can support heavy loads with less material and weight.
• It has a uniform cross-section and parallel flanges, which make it easy to connect and weld with other components.
• It has a smooth surface and a simple shape, which reduce the corrosion and maintenance costs.
• It has a good fire resistance and thermal insulation, which enhance the safety and energy efficiency of the structures.

Ipe 200 can be customized according to the customer's requirements, such as:

• It can be cut, drilled, bent, or welded to fit different shapes and sizes.
• It can be coated, painted, or galvanized to improve the appearance and protection of the surface.
• It can be combined with other materials, such as concrete, wood, or plastic, to form composite beams with enhanced properties.

Ipe 200 Profile can be used in various applications, such as:

• It can be used as a structural element for buildings, bridges, towers, cranes, and other civil engineering projects.
• It can be used as a support for roofs, floors, walls, and ceilings in industrial, commercial, and residential buildings.
• It can be used as a component for machinery, equipment, vehicles, and other mechanical engineering projects.

Ipe 200 Profile is one of the many sizes and shapes of steel profiles that we offer. We also have other types of IPE profiles, such as IPE 80, IPE 100, IPE 120, IPE 140, IPE 160, IPE 180, IPE 220, IPE 240, IPE 270, IPE 300, IPE 330, IPE 360, IPE 400, IPE 450, IPE 500, IPE 550, and IPE 600. You can find the detailed dimensions and specifications of each type in the table below. You can also compare the different types and choose the best one for your project.

If you are looking for a reliable supplier of Ipe 200 profile, you can choose us for the following reasons:

• We have more than 20 years of experience in the steel industry, and we have a professional team of engineers, technicians, and sales staff to provide you with the best service and solutions.
• We have a large inventory of Ipe 200 and other steel products, and we can deliver them to you in a timely and efficient manner.
• We have a strict quality control system and a certified quality management system, and we can guarantee the quality and performance of our products.
• We have a competitive price and a flexible payment term, and we can offer you discounts and incentives for large orders and long-term cooperation.

Here are some frequently asked questions and answers about Ipe 200 profile:

Q: What is the difference between Ipe 200 Profile and HEB 200 profile?

A: Ipe 200 Profile and HEB 200 profile are both types of steel beams, but they have different dimensions and properties. Ipe 200 Profile has a smaller width, web thickness, and flange thickness than HEB 200 profile, which means it has a lower weight and a higher strength-to-weight ratio. However, HEB 200 profile has a higher moment of inertia and section modulus than Ipe 200 profile, which means it has a higher resistance to bending and deflection.

Q: How can I calculate the weight of Ipe 200 profile?

A: You can calculate the weight of Ipe 200 Profile by multiplying the length of the beam by the weight per meter.
