H Beam 300 X 300

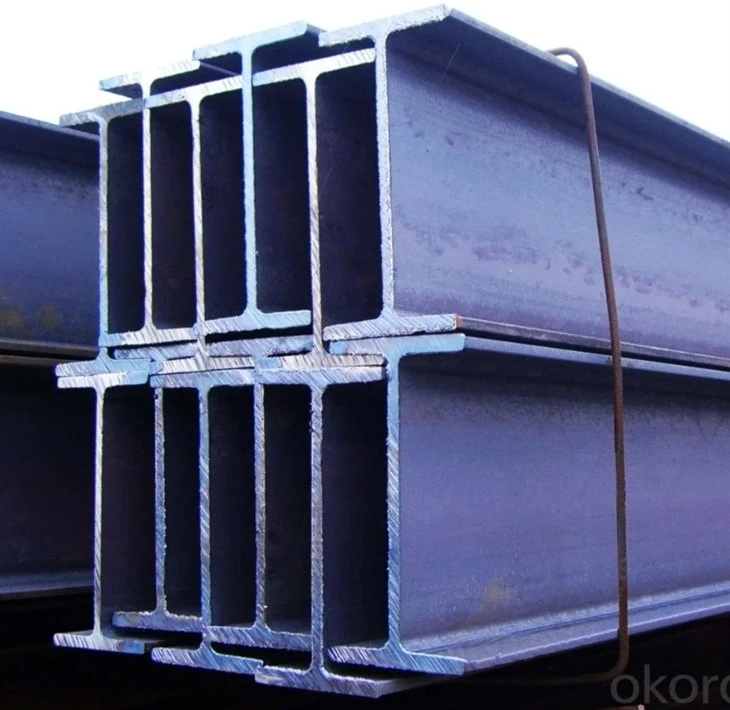

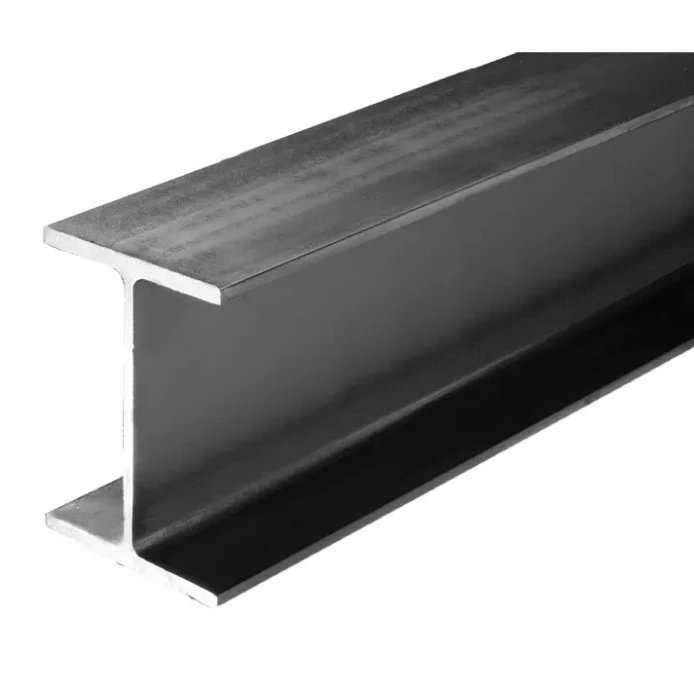

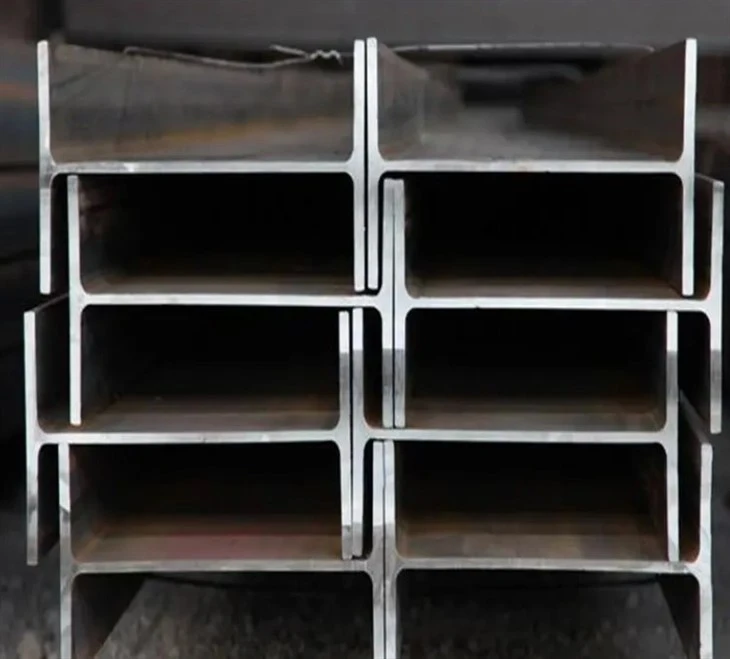

H Beam 300 X 300 is a type of steel beam that has a cross-section shape resembling the letter H. It is also known as wide flange beam, universal beam, or rolled steel joist. H Beam is made of high-quality low-carbon steel, which is hot-rolled or welded from steel plates or bars. H Beam has the advantages of high stability, good plasticity, and excellent welding performance. H Beam is widely used in various structures, such as buildings, bridges, vehicles, machines, etc.
Usage
H Beam 300 X 300 is extensively used in various construction and engineering projects, such as:

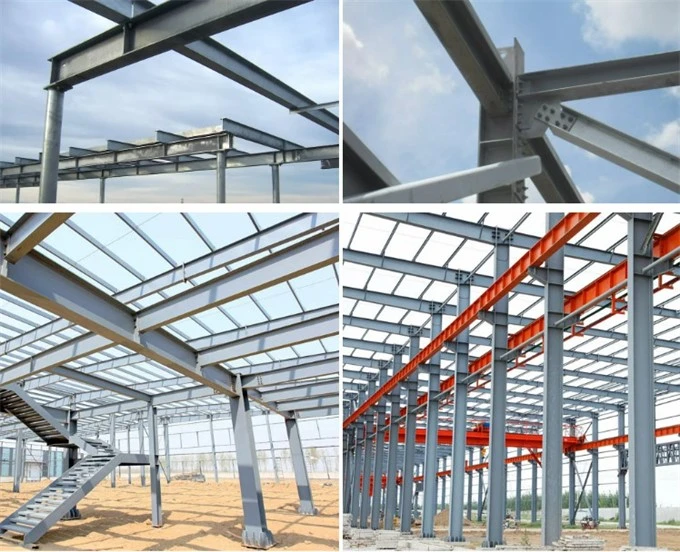

- Large Building Frameworks: For supporting the structure of high-rise buildings, commercial complexes, and industrial facilities.
- Bridges and Infrastructure: Ideal for use in the construction of bridges, overpasses, and heavy load-bearing structures.
- Architectural Applications: In large architectural installations where both aesthetic appeal and structural integrity are crucial.
- Equipment and Machinery Supports: Suitable for frameworks within large machinery or as load-bearing supports in heavy equipment.
Advantage
- Load-Bearing Capacity: Offers excellent strength and stability, crucial for supporting heavy loads.
- Efficient Design: The 'H' shape optimizes weight distribution and material usage.
- Durability: Constructed to withstand significant wear and tear over time, ensuring long-term reliability.
- Versatility: Applicable in a wide range of structural projects due to its substantial size and strength.
H Beam in China
In China, the production of H Beamis a testament to the country's advanced steel manufacturing capabilities. Chinese steel producers utilize cutting-edge technology and strict quality control measures to create H Beams that meet international standards. Known for their precision, strength, and affordability, H Beam from China is a popular choice in both domestic and global markets, catering to a diverse array of construction and engineering needs.
Product Specifications
|
ACCORDING TO STANDARD: JIS G3192 OR GB/T11263-2005 |
|||
|
H beam Section size (mm) |
Weight (kg/m) |
||
|
Height×Breadth |
Web thickness |
Flange thickness |
|
|
100×100 |
6 |
8 |
16.9 |
|
125×125 |
6.5 |
9 |
23.6 |
|
150×150 |
7 |
10 |
31.1 |
|
175×175 |
7.5 |
11 |
40.4 |
|
200×200 |
8 |
12 |
49.9 |
|
250×250 |
9 |
14 |
71.8 |
|
300×300 |
10 |
15 |
93.0 |
|
300×300 |
15 |
15 |
105.0 |
|
350×350 |
12 |
19 |
134.9 |
|
400×400 |
13 |
21 |
171.7 |
|
148×100 |
6 |
9 |
20.7 |
|
194×150 |
6 |
9 |
29.9 |
|
244×175 |
7 |
11 |
43.6 |
|
294×200 |
8 |
12 |
55.8 |
|
340×250 |
9 |
14 |
78.1 |
|
390×300 |
10 |
16 |
104.6 |
|
440×300 |
11 |
18 |
120.8 |
|
482×300 |
11 |
15 |
110.8 |
|
488×300 |
11 |
18 |
124.9 |
|
582×300 |
12 |
17 |
132.8 |
|
588×300 |
12 |
20 |
147.0 |
|
100×50 |
5 |
7 |
9.3 |
|
125×60 |
6 |
8 |
13.1 |
|
150×75 |
5 |
7 |
14.0 |
|
175×90 |
5 |
8 |
18.0 |
|
198×99 |
4.5 |
7 |
17.8 |
|
200×100 |
5.5 |
8 |
20.9 |
|
248×124 |
5 |
8 |
25.1 |
|
250×125 |
6 |
9 |
29.0 |
|
298×149 |
5.5 |
8 |
32.0 |
|
300×150 |
6.5 |
9 |
36.7 |
|
346×174 |
6 |
9 |
41.2 |
|
350×175 |
7 |
11 |
49.4 |
|
396×199 |
7 |
11 |
56.1 |
|
400×200 |
8 |
13 |
65.4 |
|
446×199 |
8 |
12 |
65.1 |
|
450×200 |
9 |
14 |
74.9 |
|
496×199 |
9 |
14 |
77.9 |
|
500×200 |
10 |
16 |
88.1 |
|
596×199 |
10 |
15 |
92.4 |
|
600×200 |
11 |
17 |
103.4 |
|
700×300 |
13 |
24 |
181.8 |
|
800×300 |
14 |
26 |
206.8 |
|
900×300 |
16 |
28 |
240.1 |
FAQ
Q: How can I get a sample of H Beam 300 X 300?
A: You can contact us by email, phone or online chat, and tell us your specific requirements, such as size, grade, quantity, etc. We will arrange the sample production and delivery as soon as possible. The sample is free, but you need to pay for the freight.
