In the construction and manufacturing industries, angle bar beams are essential components, widely used in various structural applications. When it comes to choosing between hot - rolled and cold - rolled angle bar beams, it's a decision that can significantly impact the quality, cost, and performance of a project. As an angle bar beam supplier, I've witnessed firsthand the different requirements and preferences of our clients. In this blog, I'll delve into the characteristics of both hot - rolled and cold - rolled angle bar beams to help you make an informed choice.
Hot - Rolled Angle Bar Beams
Hot - rolled angle bar beams are produced through a process where steel is heated above its recrystallization temperature, typically around 1700°F (927°C). At this high temperature, the steel becomes malleable, allowing it to be shaped easily. The process involves passing the heated steel through a series of rollers to form the desired angle shape.
One of the primary advantages of hot - rolled angle bar beams is their cost - effectiveness. Since the hot - rolling process is relatively straightforward and can be carried out at high speeds, it generally results in lower production costs. This makes hot - rolled angle bars an attractive option for large - scale construction projects where budget is a major concern.
Another benefit is their excellent ductility. The high - temperature processing gives hot - rolled angle bars the ability to deform without breaking under stress. This property is particularly useful in structures that may experience dynamic loads, such as bridges and industrial buildings. For example, in an earthquake - prone area, the ductility of hot - rolled angle bars can help a building withstand seismic forces by absorbing and dissipating energy.
However, hot - rolled angle bar beams also have some drawbacks. The surface finish of hot - rolled bars is often rough due to the scale that forms during the cooling process. This scale can be removed through additional processing, but it adds to the overall cost. Additionally, the dimensional accuracy of hot - rolled angle bars is not as precise as that of cold - rolled bars. This may not be a problem for general construction applications, but for projects that require tight tolerances, it could be a limiting factor.
Cold - Rolled Angle Bar Beams
Cold - rolled angle bar beams are manufactured by passing the steel through rollers at room temperature. This process work - hardens the steel, increasing its strength and hardness compared to hot - rolled bars. The cold - rolling process also results in a smoother surface finish and better dimensional accuracy.
The smooth surface of cold - rolled angle bars makes them suitable for applications where aesthetics are important. For instance, in architectural projects, the clean and polished appearance of cold - rolled angle bars can enhance the overall look of a structure. Moreover, the precise dimensions of cold - rolled bars are ideal for projects that demand high - precision components, such as machinery manufacturing and aerospace applications.
Cold - rolled angle bars also offer improved strength. The work - hardening that occurs during the cold - rolling process increases the yield strength of the steel, making it more resistant to deformation under load. This makes cold - rolled angle bars a good choice for structures that need to support heavy loads or withstand high stress.
On the downside, cold - rolled angle bar beams are generally more expensive than their hot - rolled counterparts. The cold - rolling process is more complex and time - consuming, which drives up the production cost. Additionally, cold - rolled bars are less ductile than hot - rolled bars. This means that they are more likely to crack or break under sudden or extreme loads, which can be a concern in some applications.
Comparison in Specific Applications
Construction
In general construction projects, hot - rolled angle bar beams are often the preferred choice. Their cost - effectiveness and good ductility make them suitable for large - scale structures such as warehouses, factories, and multi - story buildings. For example, in the construction of a warehouse, hot - rolled angle bars can be used for framing and support structures, providing the necessary strength at a reasonable cost.
However, for architectural details or projects where a high - quality finish is required, cold - rolled angle bars may be used. For instance, in the construction of a modern office building, cold - rolled angle bars can be used for decorative elements or precision - fitting components to enhance the overall appearance and functionality of the building.
Manufacturing
In the manufacturing industry, the choice between hot - rolled and cold - rolled angle bar beams depends on the specific requirements of the product. For mass - produced items with less stringent dimensional requirements, hot - rolled angle bars are often used due to their lower cost. For example, in the production of agricultural machinery, hot - rolled angle bars can be used for frames and supports.
On the other hand, for high - precision products such as electronic enclosures or automotive components, cold - rolled angle bars are preferred. Their precise dimensions and smooth surface finish ensure a perfect fit and a professional appearance.
Conclusion
So, which one is better, hot - rolled or cold - rolled angle bar beam? The answer depends on your specific needs and project requirements. If cost is a major concern and you can tolerate a slightly rough surface and less precise dimensions, hot - rolled angle bar beams are a great choice. They offer good ductility and are suitable for large - scale construction and general manufacturing applications.
On the other hand, if you need a smooth surface finish, high - precision dimensions, and increased strength, cold - rolled angle bar beams are the way to go. They are ideal for architectural projects, high - precision manufacturing, and applications where aesthetics and quality are paramount.

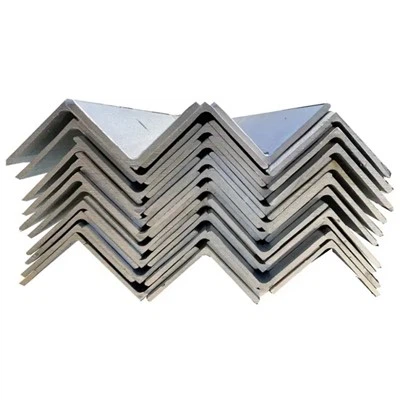

As an angle bar beam supplier, we offer a wide range of Galvanized Steel Angle Bar, Angle Bar 2X2X1 4, and Right Angle Bar options, both hot - rolled and cold - rolled. Whether you're working on a small - scale DIY project or a large - scale industrial construction, we can provide you with the right angle bar beams to meet your needs.
If you're interested in learning more about our products or have specific requirements for your project, please don't hesitate to contact us. We're here to assist you in making the best choice for your angle bar beam needs and look forward to discussing your project and potential procurement opportunities.
References
- "Steel Construction Manual", American Institute of Steel Construction
- "Metallurgy and Mechanics of Welding", John C. Lippold and David A. Kotecki
- Industry reports on steel manufacturing and construction materials
