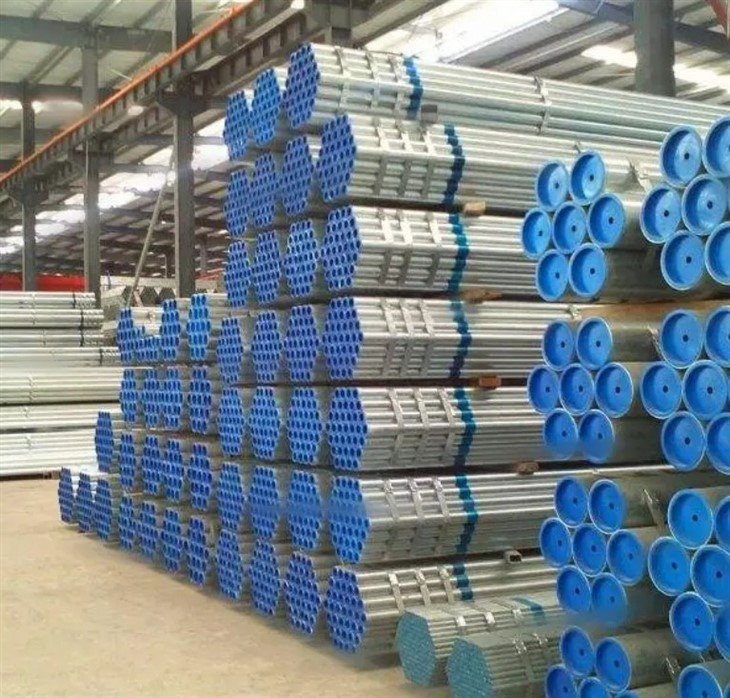

Hot Dip Galvanized Steel Pipe
The Hot Dip Galvanized Steel Pipe is a premium-grade construction and industrial material designed for enhanced durability and longevity. This pipe undergoes a hot dip galvanization process, where it is immersed in molten zinc, forming a robust, corrosion-resistant coating. It is an ideal choice for applications where both strength and resistance to environmental elements are paramount.
Product Features
- Hot Dip Galvanization: Utilizes a superior galvanization technique where the steel pipe is coated with zinc at high temperatures. This process ensures a thicker, more consistent, and highly adherent zinc coating for superior corrosion protection.
- Corrosion Resistance: The zinc coating acts as a protective barrier, significantly extending the pipe's life by preventing rust and corrosion, even in harsh environmental conditions.
- Uniform Coating: The hot dip process ensures even coverage of zinc, covering the pipe's interior and exterior surfaces, including edges and hard-to-reach areas.
- Dimensional Accuracy: Manufactured with precision, ensuring consistent diameters and thicknesses for reliable performance in structural applications.
- Heat Resistance: The galvanized coating can withstand high temperatures, making the pipe suitable for various industrial applications.
- Eco-Friendly: Zinc is a non-toxic and recyclable material, making the pipe an environmentally friendly choice.
- Standards Compliance: Meets international quality and safety standards, ensuring reliability and suitability for a wide range of applications.
Product Specifications
The following table shows the chemical composition and mechanical properties of Hot Dip Galvanized Steel Pipe:
|
Element |
Weight % |
|
Carbon |
0.15 max |
|
Manganese |
0.60 max |
|
Phosphorus |
0.05 max |
|
Sulfur |
0.05 max |
|
Zinc |
99.99 min |
|
Property |
Value |
|
Yield Strength |
235 MPa |
|
Tensile Strength |
375 MPa |
|
Elongation |
26% min |
The following table shows the dimensions and weights of Hot Dip Galvanized Steel Pipe:
|
Size |
Wall Thickness |
Weight per Meter |
Weight per 6 Meter |
|
1/2" |
2.77 mm |
1.27 kg |
7.62 kg |
|
3/4" |
2.87 mm |
1.69 kg |
10.14 kg |
|
1" |
3.38 mm |
2.50 kg |
15.00 kg |
|
1 1/4" |
3.56 mm |
3.39 kg |
20.34 kg |
|
1 1/2" |
3.68 mm |
4.05 kg |
24.30 kg |
|
2" |
3.91 mm |
5.44 kg |
32.64 kg |
|
2 1/2" |
5.16 mm |
8.63 kg |
51.78 kg |
|
3" |
5.49 mm |
11.29 kg |
67.74 kg |
|
4" |
6.02 mm |
16.07 kg |
96.42 kg |
|
5" |
6.55 mm |
21.77 kg |
130.62 kg |
|
6" |
7.11 mm |
28.26 kg |
169.56 kg |
Specifications:
| Material | API5L, Gr.A&B, X42, X46, X52, X56, X60, X65, X70, X80, ASTM A53Gr.A&B, ASTM A106 Gr.A&B, ASTM A135, ASTM A252, ASTM A500, DIN1626, ISO559, ISO3183.1/2, KS4602, GB/T911.1/2, SY/T5037, SY/T5040STP410, STP42 |
| Grade | API A106 GR.B A53 Gr.B seamless steel pipe/ ASTM A106 Gr.B A53 Gr.B steel tubeAP175-79, DIN2I5L, ASTM A106 Gr.B, ASTM A53 Gr.B, ASTM A179/ A192/ A213/ A210/ 370 WP91, WP11, WP22DIN17440, DIN2448, JISG3452-54 |
| Outside Diameter | 1/2'--24' 21.3mm-609.6mm |
| Technique |
1/2'--6': hot piercing processing technique 6'--24': hot extrusion processing technique |
| Tolerance | ±1% |
| Length | 5.8m 6m Fixed, 12m Fixed, 2-12m Random |
Available in a range of diameters, wall thicknesses, and lengths to suit diverse requirements.
Specific customizations can be accommodated upon request.
Applications:
- Water and gas transportation
- Structural and construction projects
- Outdoor and industrial frameworks
- Fencing, railings, and scaffolding
- Agricultural and irrigation systems
- Automotive and machinery parts
Maintenance and Longevity:
The hot dip galvanized coating ensures low maintenance, with only occasional cleaning needed. The pipe is designed to last for decades, even in outdoor or industrial settings.
Environmental Impact:
The galvanization process and materials used are environmentally friendly, with minimal impact on the surroundings.
